| GENERAL DATA | |
|---|---|
| MAKE | ARMOR FIRE |

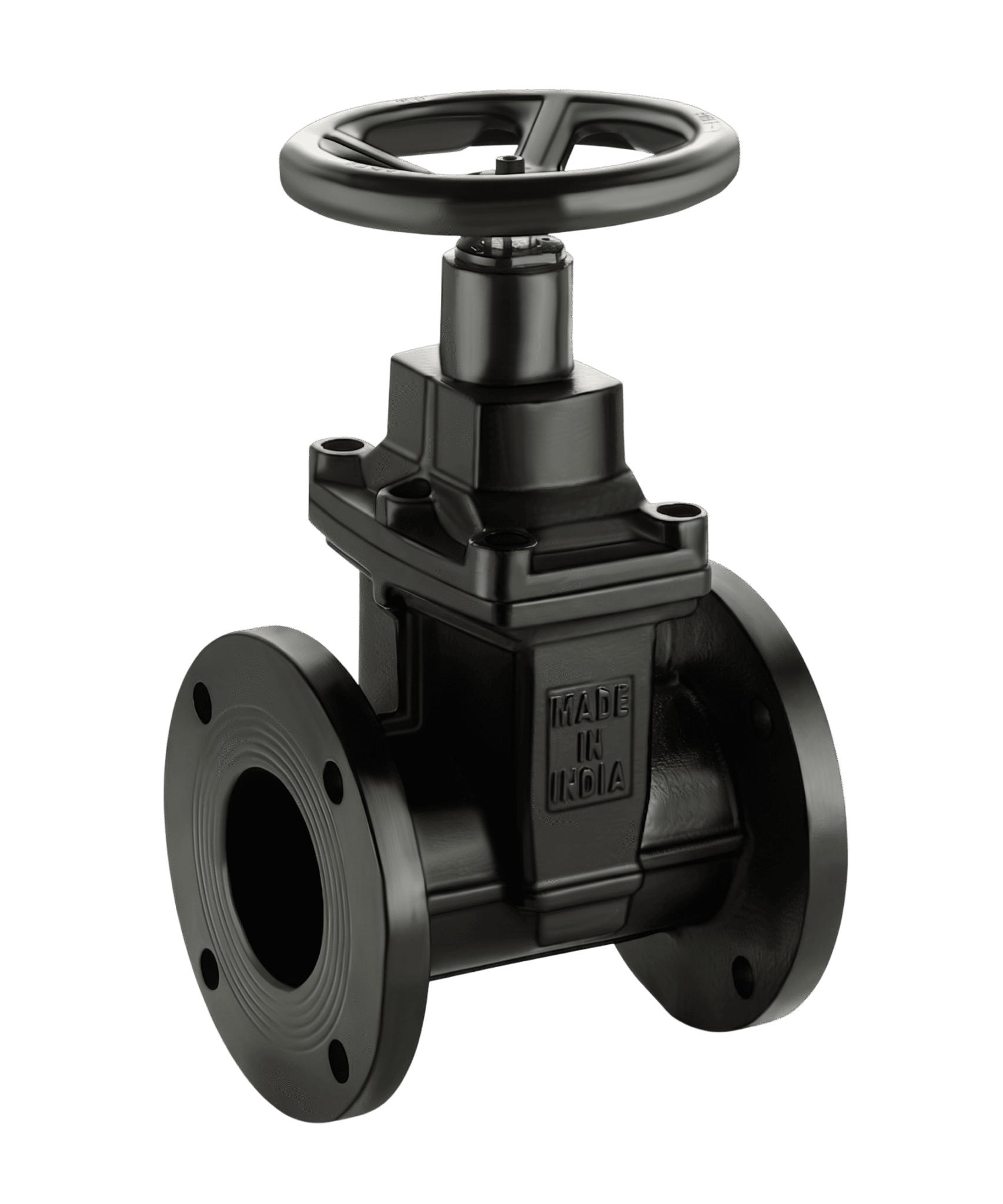

| MODEL | SLUICE VALVE / GATE VALVE |
| SIZE | DN-50, DN-65, DN-80, DN-100, DN-125, DN-150, DN-200, DN-250, |
| MATERIAL OF CONSTRUCTION | SGI (IS:1865 SG 400/15) |
| PRESSURE RATING | PN 16 |
| OPERATION | MANUAL HAND WHEEL |
| COATING | EPOXY COATED |
| END CONNECTION | FLANGE CONNECTION |
| PERFORMANCE TEST | |
| HYDRAULIC TEST (BODY TEST) | TESTED AT 24 kg/cm² FOR 2½ MINUTES |
| HYDRAULIC TEST (SEAT TEST) | TESTED AT 17.6 kg/cm² FOR 2½ MINUTES |
| DOCUMENTATION | INTERNAL INSPECTION REPORT, SUPPLIER’S CERTIFICATES |
| WARRANTY | |
| WARRANTY & GUARANTEE | 12 MONTHS FROM THE DATE OF SUPPLY |
